SUPPORTED POWER BOARDS
Ready-to-use power boards and customer-specific boards
Several power boards have been tested with FPGA carrier boards and the Vivado software toolchain.
Systems based on Motor Power Boards and Controller Boards are ready to become a customer evaluation kit by simply adding the desired motor.
Customers can obtain free evaluation software and related documentation, including Vivado projects, bitstreams, or SD-card images.
Customers may request a Design Service to include their Motor Power Board in the supported list for public or private use.
TLIMOT – 3-Level Inverters

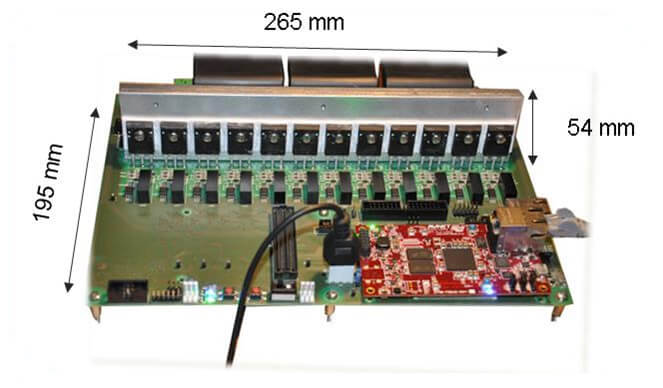

TLIMOT is a multilevel Silicon Carbide converter that provides more than two voltage levels, enabling smoother and less distorted DC–AC power conversion for motor drives and energy applications.
READ MORE ABOUT TLIMOT >>>
EDPS Power Stage

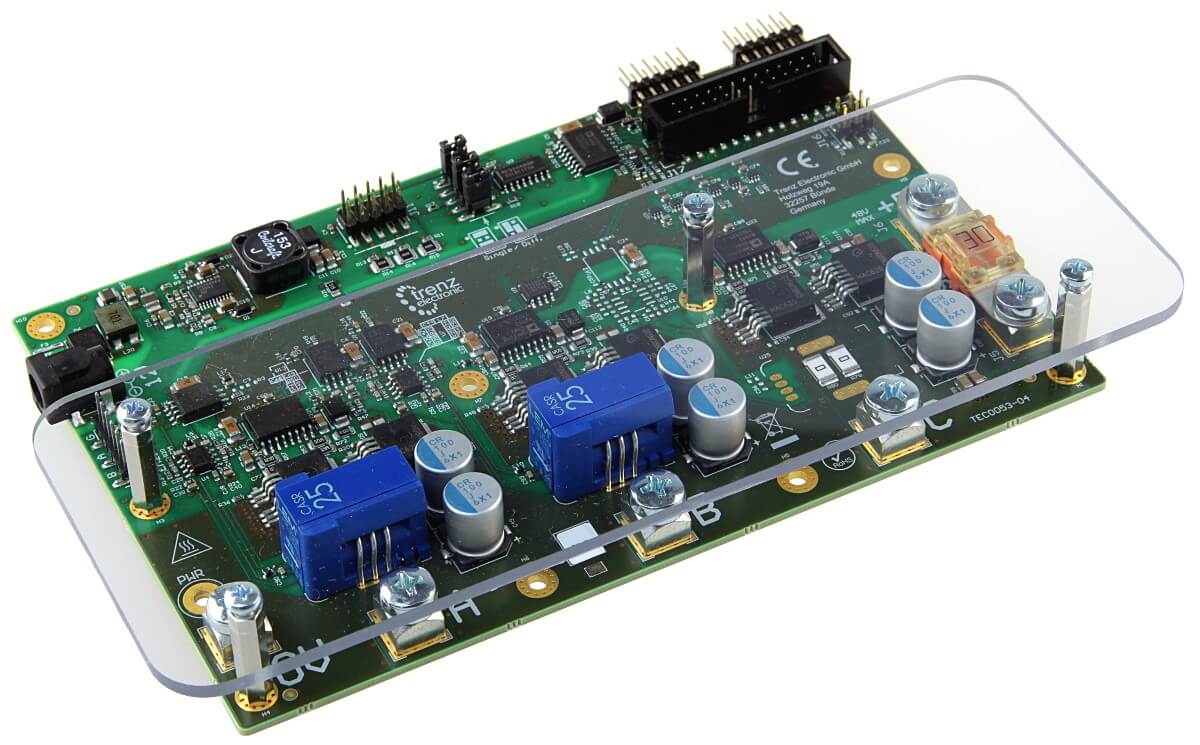

EDPS is a Trenz Electronic power-stage board designed to be controlled through 2× PMODs.
Supported carrier boards:
Arty Z7-10, Arty Z7-20, PYNQ-Z1, ZYBO Z7-10, Cora Z7, ZedBoard, UltraZed (with UltraZed-EG PCIe Carrier Board), MiniZed
READ MORE ABOUT EDPS >>>
TEP2 Power Stage

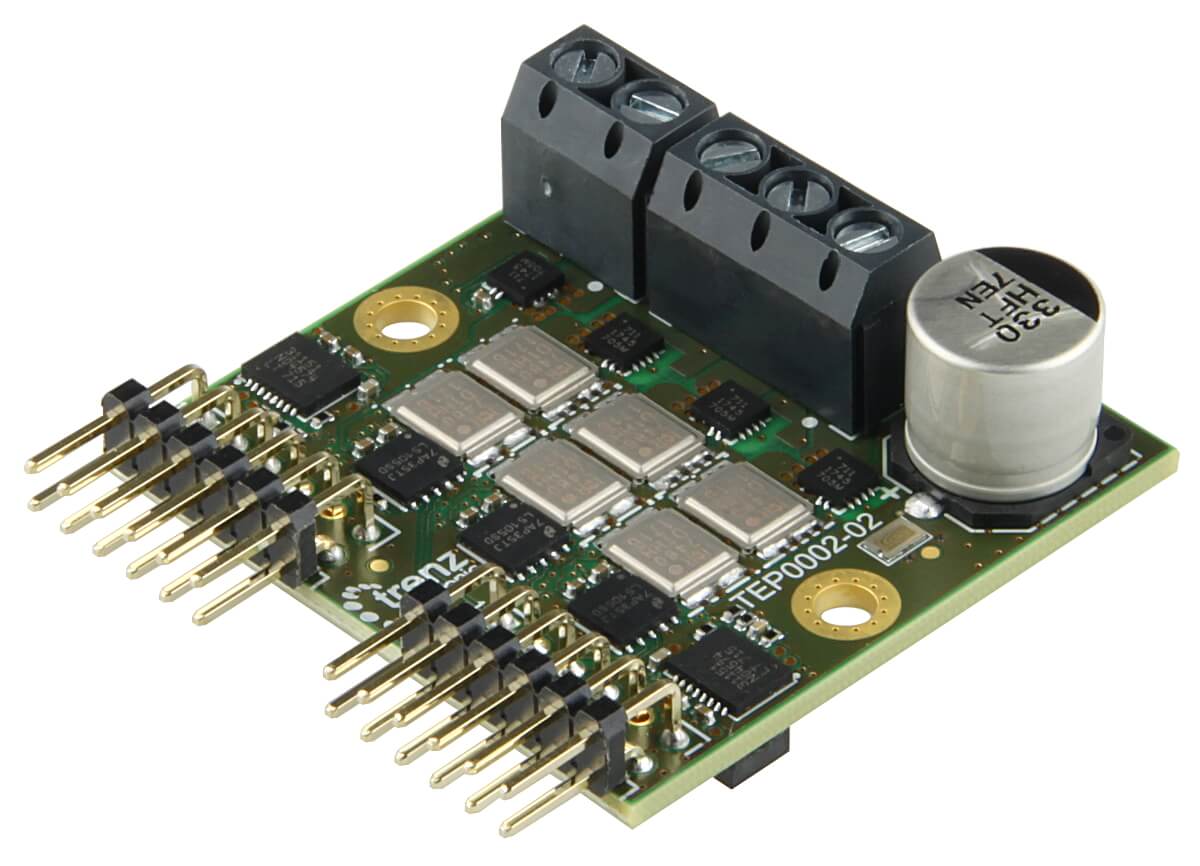

TEP0002 is a Trenz Electronic motor-driver board designed to be controlled through 2× PMODs.
Supported carrier boards:
Arty Z7-10, Arty Z7-20, PYNQ-Z1, ZYBO Z7-10, Cora Z7, ZedBoard, UltraZed (with UltraZed-EG PCIe Carrier Board), MiniZed
READ MORE ABOUT TEP2 >>>
Kria KD240 Drives Starter Kit

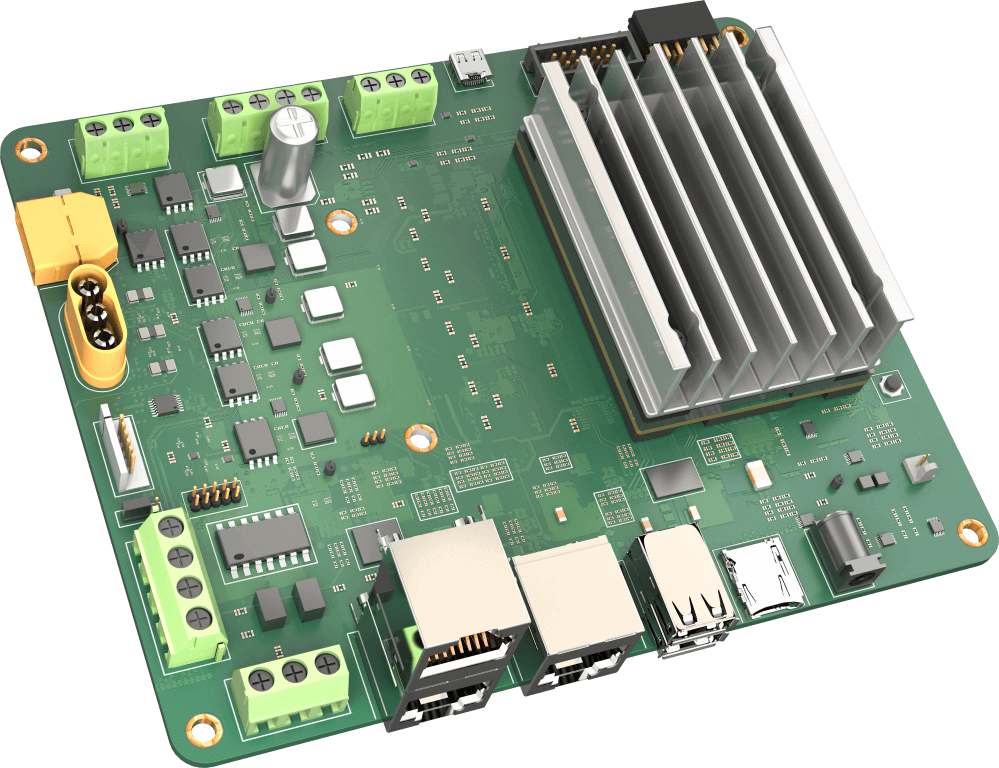

The AMD Kria™ KD240 Drives Starter Kit includes a non-production K24 SOM, carrier card, and thermal solution. The SOM integrates an AMD Zynq™ UltraScale+™ MPSoC, run-time memory, boot devices, an integrated power solution, and a security module. The drive-oriented carrier card provides interfaces for motor control, USB, SD card, and Ethernet.
The QDESYS motor-control software is available in three configurations:
- Bare-metal software using Vitis 2025.1 and the QDESYS SDK
- Petalinux 2025.1 (evaluation only)
- Ubuntu 24.04 (evaluation only)
Read the software installation procedure and open the KD240 resource folder.
READ MORE ABOUT KD240 Drives Starter Kit >>>
Kria KR260 Robotics Starter Kit

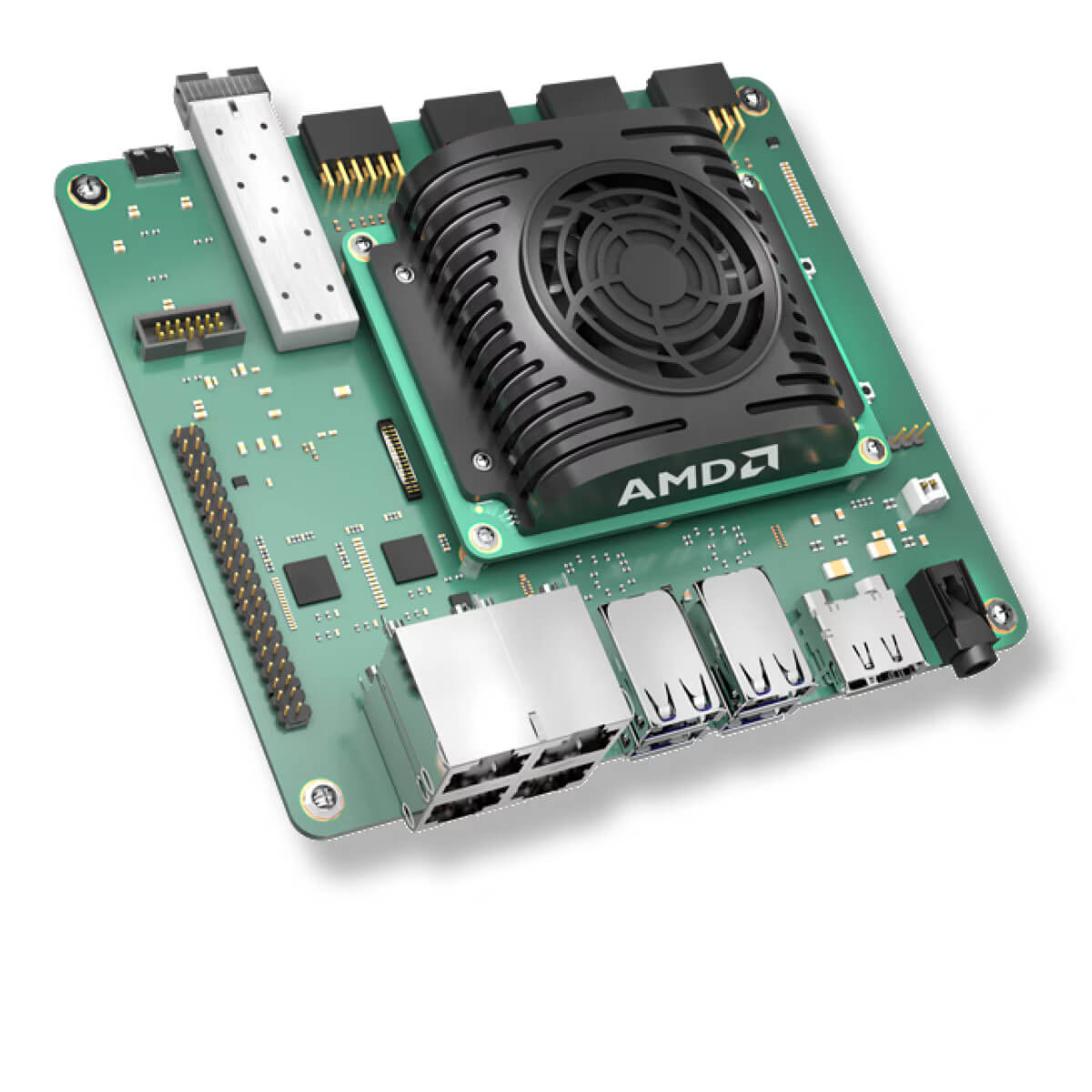

The AMD Kria™ KR260 Robotics Starter Kit includes a non-production K26 SOM, carrier card, and thermal solution. The SOM integrates an AMD Zynq™ UltraScale+™ MPSoC, run-time memory, boot devices, an integrated power solution, and a security module.
The QDESYS motor-control software is available in three configurations:
- Bare-metal software using Vitis 2025.1 and the QDESYS SDK
- Petalinux 2025.1 (evaluation only)
- Ubuntu 24.04 (evaluation only)
Read the software installation procedure and open the KR260 resource folder.
READ MORE ABOUT KR260 Robotics Starter Kit >>>
